United Chemical — Premium Coconut Shell Activated Carbon for Gold Recovery
Short product intro

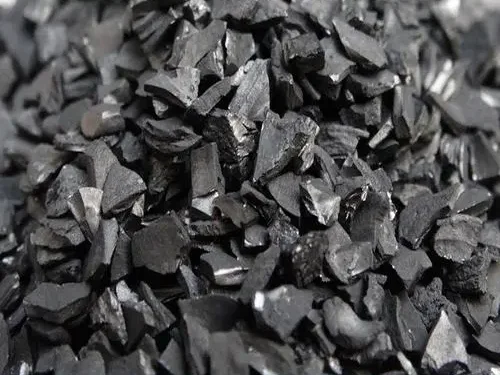

United Chemical’s Premium Coconut Shell Activated Carbon is engineered for maximum gold recovery performance in CIP, CIL, CIC and heap-leach systems. Made from select Southeast Asian coconut shells and processed through precision carbonization, high-temperature activation and proprietary particle-shaping, the product combines exceptional adsorption activity with industry-leading mechanical durability — COA-verified for reliability in demanding mining environments.
Key Benefits — What makes our carbon better
COA-verified performance — lab results (sample dated Nov 29, 2025) confirm K-Value ≥ 26 kg/t (≈26 g Au/kg), R-Value ≥ 50%, CTC ≥ 50%, Butane Activity ≥ 19.5%.
Ultra-high mechanical strength — engineered particle shape and high hardness (premium model) reduce fines and attrition, lowering carbon losses and makeup costs.
Optimized pore architecture — well-developed micropores and large surface area deliver fast adsorption kinetics and high equilibrium loading of Au(CN)₂⁻.
Ready-to-use, low-maintenance — particles are pre-shaped to remove weak, needle or angular fragments; minimal preprocessing (water wash) required.
Excellent elution and regeneration — efficient desorption enables multiple reuse cycles, reducing total cost of ownership.
Stable batch quality & traceability — consistent specs, full COA and batch traceability available upon request.
AuCarb™ Premium Gold Recovery Activated Carbon
Selection Guide Gold Recovery Coconut Shell Activated Carbon
Precisely match your CIP, CIL, CIC, VAT leaching and Heap leaching processes to maximize gold recovery efficiency and minimize operational costs.
United Chemical’s newly developed premium gold recovery coconut shell activated carbon series (including BC1100, AuCarb™ AC50, AC55, and AC60) is engineered specifically for global metallurgical recovery networks. Our products deliver exceptional operational stability across diverse extraction frameworks, including aggressive Carbon-in-Pulp (CIP) and Carbon-in-Leach (CIL) circuits, high-volume Carbon-in-Column (CIC) loops, as well as complex Gold Ore Heap Leaching and continuous VAT Leaching / Tank Leaching facilities. Featuring outstanding mechanical hardness, an ultra-dense sub-nanometer microporous matrix, and highly optimized gold loading kinetics, our activated carbon effectively minimizes gold lock-up, limits carbon fines degradation, and drastically cuts soluble gold losses under the most rigorous, high-attrition mining environments worldwide.
🌟 Brand Introduction: Outstanding Gold Recovery Solutions
Shaanxi United Chemical CO., Ltd. stands proudly as China's leading provider of gold mining chemicals and comprehensive engineering technology solutions. Our exceptional products and services have established a robust global footprint, covering over 77 countries and effectively supporting more than 200 major mining facilities worldwide.
To ensure long-term, superior performance when processing a wide variety of complex ores, we have specially engineered and developed the AuCarb™ series of premium, renewable granular microporous activated carbon. Exclusively tailored for highly efficient gold recovery processes (CIL & CIP), this series is strongly recommended for the initial filling of recovery circuits. It not only guarantees exceptional gold recovery rates but also significantly reduces activated carbon inventory losses.
To assist clients of varying production scales and ore grades in rapidly identifying the perfect fit, we have meticulously curated the following four core product lines: BC1100, AC50, AC55, and AC60.
🔍 In-Depth Analysis of Four Core Products
AuCarb™ BC1100 Cost-Effective View Details →
Strategic Positioning: The ultimate cost-effective weapon for Heap Leaching and simplified CIP processes. Directly competing with and disrupting the conventional market, aiming to provide clients with the most highly competitive pricing through massive shipping volumes and economies of scale.
Applicable Scenarios: Heap Leach, simplified CIP workflows.
Target Clients: Entry-level/low-end application scenarios featuring lower production capacities, lower raw ore gold grades, and extremely strict cost-control requirements.
High Iodine Value Guarantee: Iodine number up to ≥1100 mg/g, ensuring robust foundational adsorption capabilities.
Wear-Resistant Design: Characterized by remarkably low platelet and attrition rates, with ball-pan hardness reaching ≥98.5%.
Physical Metrics: Apparent density tightly controlled at 0.40-0.50 g/ml, Total Ash Content ≤5%, Moisture ≤10%.
Selection Advice: Profit margins are entirely yielded to the customer, making it the perfect choice for projects demanding low procurement costs and massive bulk consumption.
AuCarb™ AC50 The Core Standard View Details →
Strategic Positioning: The premier choice for the vast majority of clients. Comprehensively benchmarking against the top-tier international brand Jacobi G208S series, achieving the absolute perfect balance between supreme hardness, wear resistance, and adsorption kinetics.
Applicable Scenarios: Carbon-in-Pulp (CIP), Carbon-in-Leach (CIL), Carbon-in-Column (CIC).
Target Clients: Mid-tier users with moderate production capacities and relatively high gold grades.
Exceptional Mechanical Strength: Features ultra-low platelet content (≤5%) and ultra-low attrition (≤1.5%). Ball-pan hardness soars to ≥99%, drastically reducing tailing gold losses caused by mechanical wear.
Powerful Adsorption Kinetics: K-value reaches ≥26 Kg/t, R-value hits ≥50%, demonstrating outstanding adsorption capacity and velocity.
Physical Metrics: Apparent density 0.48-0.55 g/ml, Carbon Tetrachloride Activity (CTC) ≥50%.
Selection Advice: Delivering highly stable performance at a reasonable price point, it stands as the industry's golden standard for standard CIP/CIL/CIC circuits.
AuCarb™ AC55 Advanced Extraction View Details →
Strategic Positioning: SThe advanced upgrade for medium-to-large scale gold mines, Comprehensively benchmarking against the top-tier international brand Jacobi G209S series, designed to further minimize carbon consumption while substantially elevating overall adsorption performance.
Applicable Scenarios: Carbon-in-Pulp (CIP), Carbon-in-Leach (CIL), Carbon-in-Column (CIC).
Target Clients: High-end users with large production capacities, high gold grades, and extreme sensitivity to material attrition and loss rates.
Enhanced Adsorption Performance: Adsorption capacity (K-value) elevated to ≥28 Kg/t, and adsorption rate (R-value) upgraded to ≥55%, significantly magnifying gold extraction efficiency.
Superb Wear Resistance: Maintains the excellent ≤5% platelet content and ≤2% ultra-low attrition , ensuring total granular integrity during prolonged, intense agitation.
Physical Metrics: Apparent density 0.45-0.55 g/ml, Carbon Tetrachloride Activity (CTC) increased to ≥55%.
Selection Advice: Notably reduces ton-ore carbon consumption, making it the ideal selection for large-scale chemical plants striving for the absolute optimization of comprehensive operational costs.
AuCarb™ AC60 Ultimate Flagship View Details →
Strategic Positioning: The top-tier high-kinetic granular microporous carbon. Comprehensively benchmarking against Jacobi G210S series. Engineered to maximize gold production yields and absolutely minimize carbon losses.
Applicable Scenarios: Carbon-in-Pulp (CIP), Carbon-in-Leach (CIL), Carbon-in-Column (CIC).
Target Clients: An exclusive group of cutting-edge clients (low in number but with the most stringent demands) operating with massive capacities, exceptionally high gold grades, and a relentless pursuit of ultimate recovery rates.
Unparalleled Adsorption Power: Boasts top-of-the-line adsorption capacity (K-value ≥30 Kg/t) and lightning-fast kinetics (R-value ≥60%).
Top-Tier Purity & Hardness: Total Ash Content ≤3%, Moisture ≤5%, Hardness ≥99%. Butane Activity up to ≥23%.
Process Optimization Guarantee: Its flawless 3D shape effectively prevents screen blinding. Low head loss tremendously optimizes adsorption kinetics, making it highly suitable even for the extraction of Glod-rich ores.
Selection Advice: Specifically designed for top-tier mining giants with a zero-tolerance policy for gold loss, brilliantly highlighting the brand's supreme technological prowess.
📊 Core Parameters Intuitive Comparison Table
To facilitate a more intuitive selection process, we have summarized the core technical parameters of our four products.
*Based on standard 6x12 Mesh or 8x16 Mesh specifications; strictly packed in 25kg heavy-duty laminated elastic PE bags, We offer containerized global shipping under FOB, CIF, CFR terms.
*Execution Standards: Complies with American ASTM standards and A.A.R.L. internal mining testing standards. The product has passed third-party inspection and test samples can be provided.
| Core Testing Parameter | AuCarb™ BC1100 | AuCarb™ AC50 | AuCarb™ AC55 | AuCarb™ AC60 |
|---|---|---|---|---|
| Market Benchmarking Positioning | Conventional Heap Leach / High Cost-Performance | Comparable product: Jacobi G208S | Advanced choice for Large Scale Comparable product: Jacobi G209S | Comparable product: Jacobi G210S |
| Apparent Density | 0.40 - 0.50 g/ml | 0.48 - 0.55 g/ml | 0.45 - 0.55 g/ml | 0.45 - 0.55 g/ml |
| Ball-pan Hardness | ≥ 98.5% | ≥ 99% | ≥ 99% | ≥ 99% |
| Platelet Content | ≤ 5% | ≤ 5% | ≤ 5% | ≤ 5% |
| Attrition | ≤ 2% | ≤ 1.5% | ≤ 2% | ≤ 2% |
| Total Ash Content | ≤ 5% | ≤ 3% | ≤ 3% | ≤ 3% |
| Moisture | ≤ 10% | ≤ 5% | ≤ 5% | ≤ 5% |
| Adsorption Capacity (K Value) | / | ≥ 26 Kg/t | ≥ 28 Kg/t | ≥ 30 Kg/t |
| Adsorption Rate (R Value) | / | ≥ 50% | ≥ 55% | ≥ 60% |
| Iodine Number | ≥ 1100 mg/g | / | / | / |
| Butane Activity | / | ≥ 19.5% | ≥ 21% | ≥ 23% |
| CTC (Carbon Tetrachloride Activity) | / | ≥ 50% | ≥ 55% | / |
🏭 Engineering Application Reference: Typical Design Parameters
As a premier provider of engineering technology solutions, AuCarb™ activated carbon perfectly aligns with the following typical design parameters of large-scale plants:
| Treatment Capacity | CIP Configuration(125000t per month) | CIL Configuration(250000t per month) |
|---|---|---|
| Gold Head Grade | 4 g/t | 4 g/t |
| Pulp FlowRate | 240 m³/h | 475 m³/h |
| No. of Contactors | 6 | 8 |
| Volume of Contactors | 160 m³ | 1780 m³ |
| Mass of AuCarb™ | 5 t per contactor | 20 t per contactor |
| Rate of AuCarb™ Transfer | 2.75 t per day | 5.5 t per day |
Performance Metrics — what these mean for your plant
Higher K and R values = more gold adsorbed per unit of carbon and faster kinetics — directly increases gold recovery and throughput.
Low attrition & high hardness = fewer fines, less screening and electrowinning contamination, reduced makeup carbon and lower OPEX.
Optimized particle distribution (6×12) = stable bed porosity, less screen plugging and predictable hydraulic behavior.
Excellent elution response = efficient gold strip and reliable regeneration cycles, improving carbon life and cash flow.
Typical Applications
Carbon in Pulp (CIP) circuits
Carbon in Leach (CIL) plants
Carbon in Column (CIC) adsorption systems
Heap leaching adsorption with carbon capture
Elution and regeneration circuits feeding electrowinning
Secondary uses: industrial adsorption, water treatment (grade-dependent)
Packaging, Logistics & Support

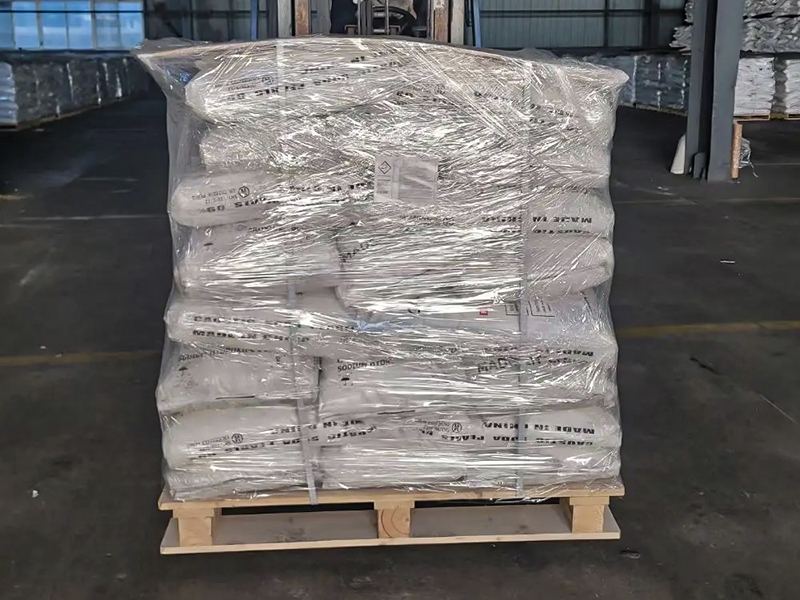

Packaging:Strictly packed in 25kg heavy-duty laminated elastic PE bags, .
Shipping: Export packaging suitable for sea/air; pallets available on request.
Support: Full batch traceability, COA for each shipment, pilot testing and lab support available — we assist with matching carbon grade to your ore and reagent system.
Certifications & Quality Standards
Manufactured under strict QA/QC protocols.
Meets or aligns with relevant industry standards (ASTM D2862 particle distribution, AARL evaluation metrics commonly used for mining carbon selection).
COA and technical datasheets available for regulatory and procurement review.
Handling & Use Recommendations (quick guide)
Pre-use: Rinse with water to remove transport dust; no grinding required for premium particle shapes.
Loading: Follow your plant’s standard inventory and dosing practice; monitor carbon fines and screen performance.
Elution: Standard elution temperatures and eluents apply; check COA for specific ash/pH interactions.
Regeneration: Multiple cycles expected — monitor K and R over life cycles to plan makeup.
Safety: Store in dry, ventilated area; follow local regulations for handling and transport of activated carbon.
Why United Chemical — commercial & technical advantages
Proven lab data (COA) and consistent production batches reduce procurement risk.
Technical service: sample testing, pilot trials and custom particle grading available.
Cost-effectiveness: lower lifecycle cost through reduced attrition, extended cycles and higher gold capture.
📞 Partner with Us for Mutual Success
Whether you are operating a heap leaching project with a limited initial budget, or managing a massive CIL plant relentlessly pursuing the ultimate recovery of every single gram of gold, AuCarb™ provides the most perfectly tailored technical-grade activated carbon for you. Our particle size distribution is exceptionally uniform (particles larger than the upper mesh limit and smaller than the lower mesh limit are strictly controlled within < 5.0% and < 4.0% respectively), eliminating pipeline blockage and gold loss risks right from the source. Immediate contact us today！
| ShaanXi United Chemical Co., Ltd. Address: Jinhui Global Plaza, Qujiang District, Xi'an, Shaanxi Province, P.R. China Mobile / WhatsApp:+86 17392705576 | Email:info@unitedchemicalcn.com Website:www.unitedchemicalcn.com Focusing on Gold Mining & Precious Metal Extraction Solutions. Pioneer | Collaborate | Communicate | Dedicated | Honesty | Win-win |
